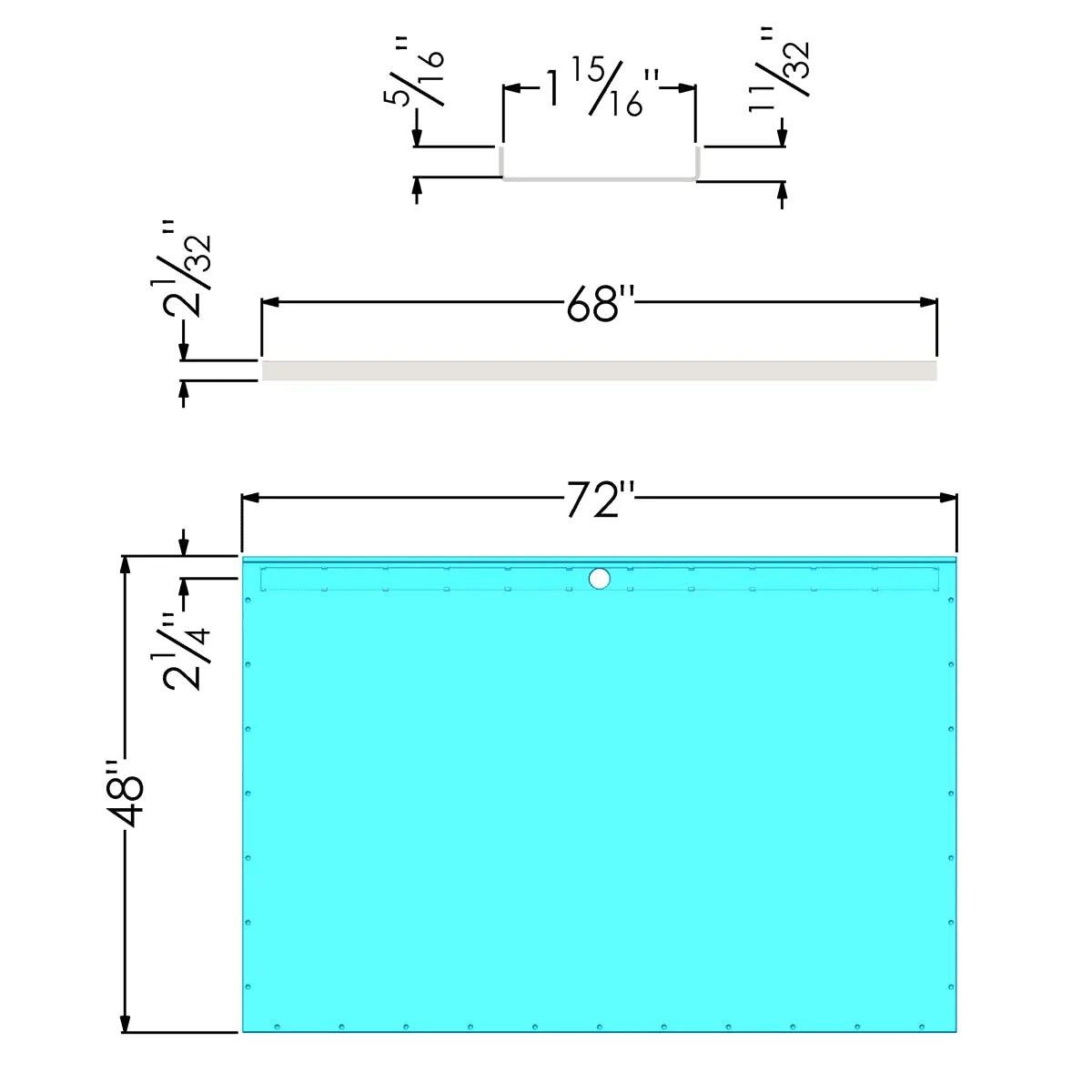

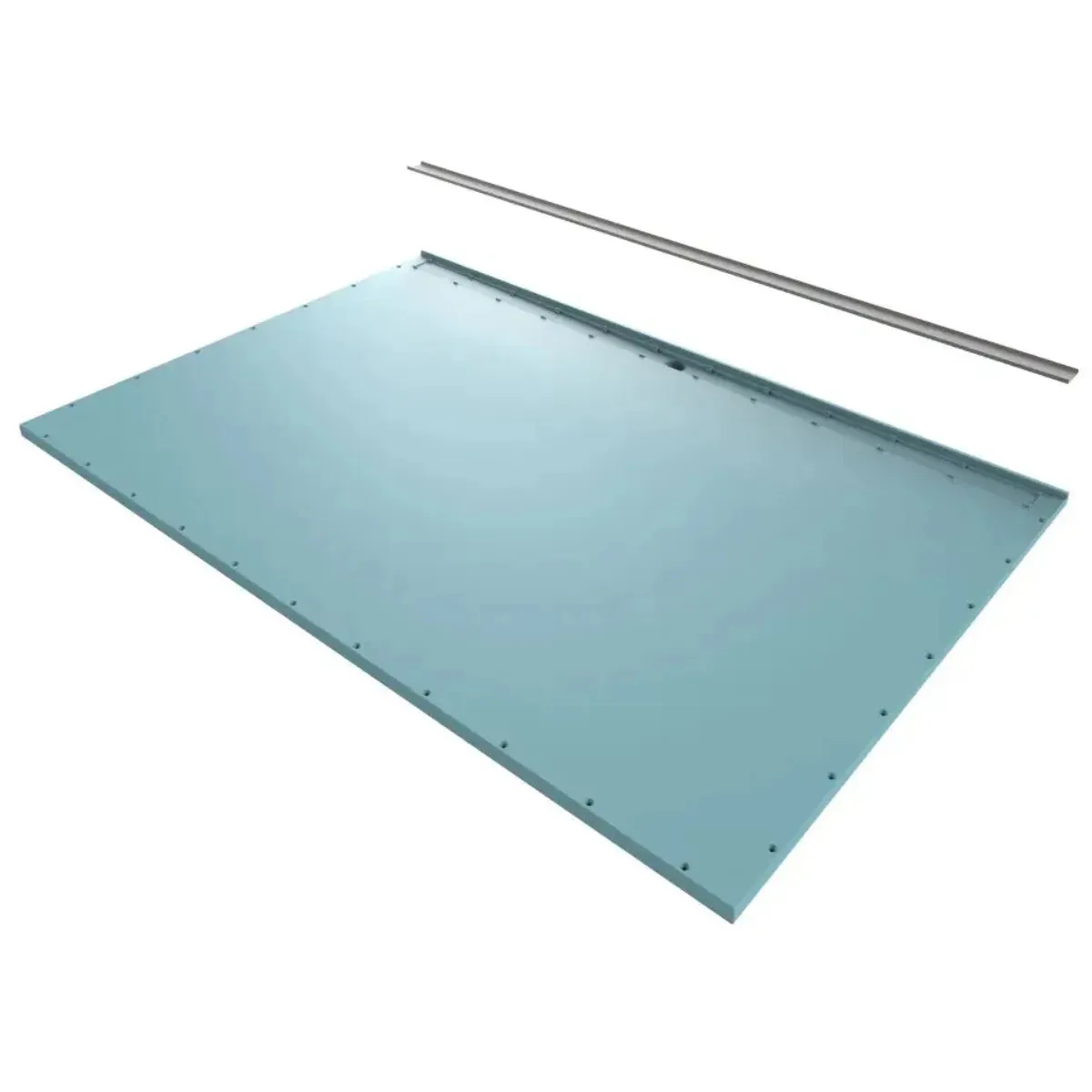

Arc Ultimate Linear Shower Base - 72" x 48"

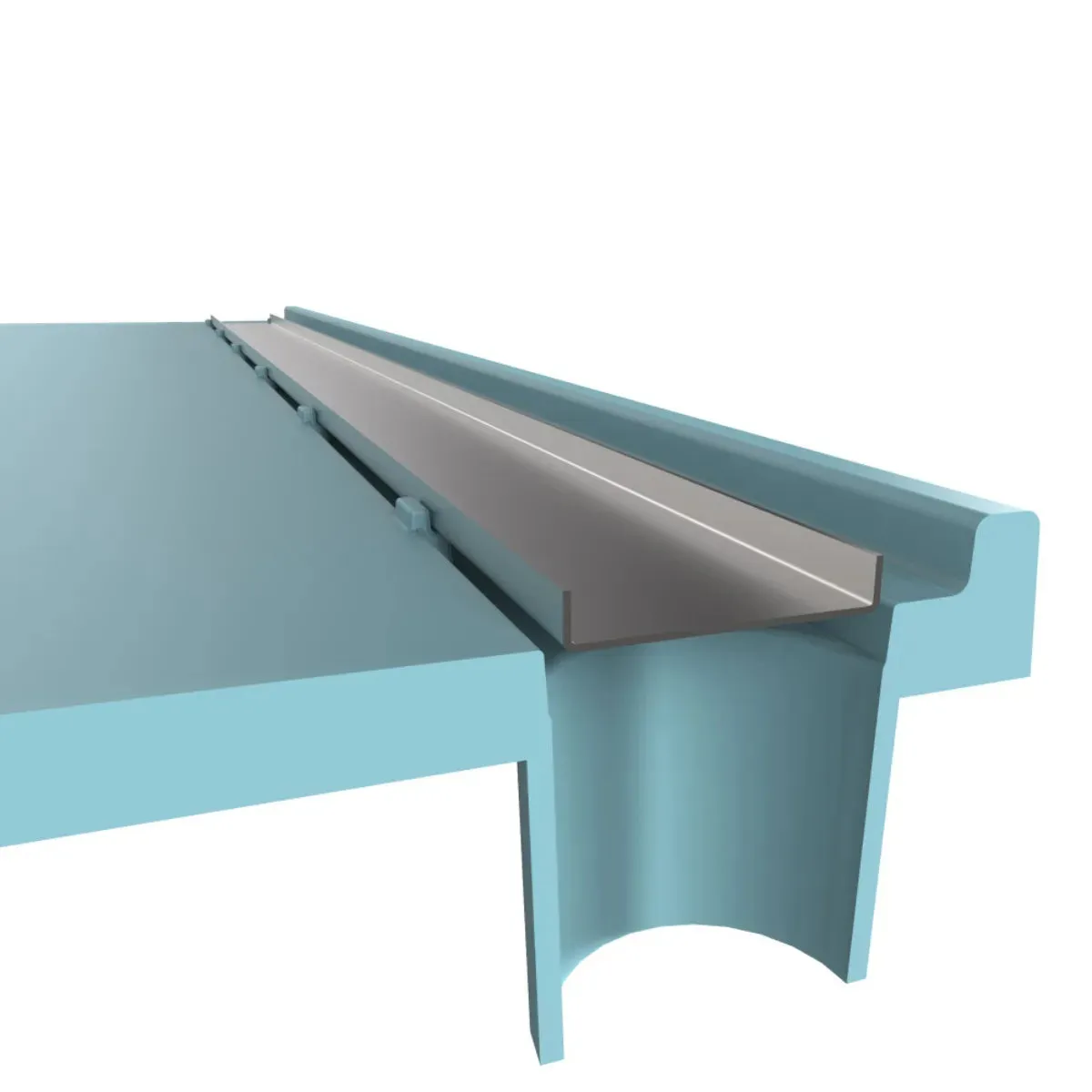

With one large continuous pitch to the stylish yet discreet tile-in linear drain, the Tuff Form Ultimate Linear is made from shares all the same structural properties of the Tuff Form Shower Baseline, as it's made from lightweight yet incredibly strong compression molded glass-fiber reinforced plastic, which offers superior support for wheelchair users and those needing assistance with showering and is the ideal foundation for large format ceramic tile or natural stone.

Features

• Zero-entry access is designed to be wheelchair and disability friendly, as well as easier to clean and safer to use for the whole family
• 840 lbs max. capacity when installed on a 16" O.C. joist system. Enough to support a wheelchair, user and carer

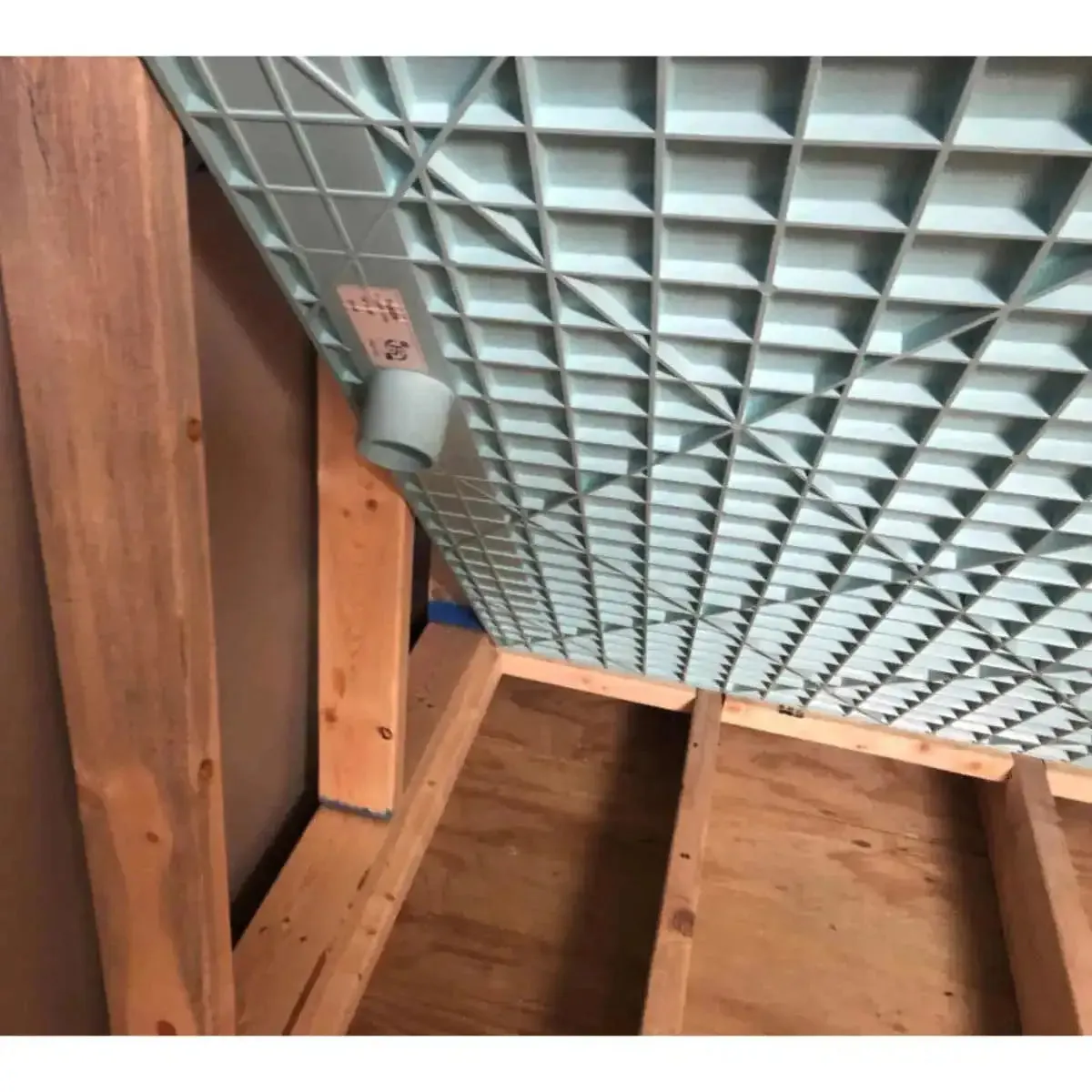

• The waffle underside ensures rigidity while being lightweight
• Install on wooden joists, sub-floor, or concrete (no need to notch, lower, or alter joists)
• Can be cut down to size using standard power tools (within 6" of drain)
• Single pitch directs water flow towards the drain for efficient drainage

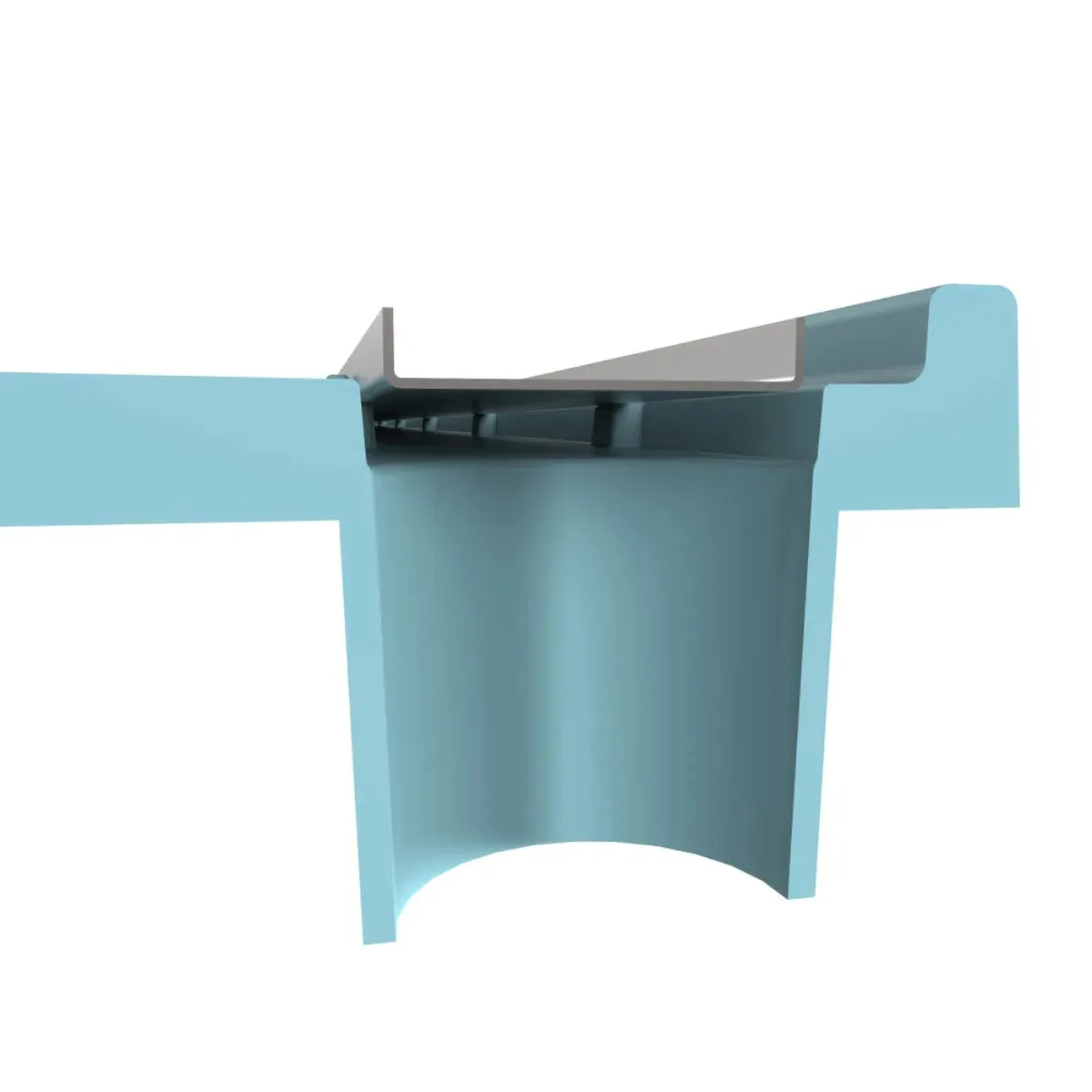

• The 2" drain outlet is the only part sitting below the floor joist system
• 1-3/4" wide leveling rim around the perimeter with pre-bored, countersunk pilot holes
• Use tile between 1/4" to 1" thick
• Includes a 2" PVC drain connector as standard
• 7/8" thick round perimeter
• Covered by Arc Limited Lifetime Warranty
